Stainless Steel Sintered Filters: Features and Benefits
Stainless Steel Sintered Filters are rigid, porous filtration media manufactured from stainless steel powders. Engineers compact and then heat these powders below their melting point, creating a strong, interconnected pore structure. This unique manufacturing process gives them superior filtration capabilities. The core value proposition of Stainless Steel Sintered Filters lies in their exceptional durability, high-temperature resistance, and precise filtration efficiency. The market for sintered metal filters, where stainless steel predominates, demonstrates significant growth, reflecting their increasing adoption in critical industrial applications. This robust performance ensures reliable operation and extended service life in challenging environments.
Key Takeaways
- Stainless steel sintered filters are strong, porous filters. They are made from stainless steel powder. They clean liquids and gases well.
- These filters are very strong and last a long time. They work well in hot places. They also resist rust and many chemicals.
- The filters can be cleaned and used again. This saves money and helps the environment. They reduce waste and the need for new filters.
- They remove tiny particles very well. This makes sure products are clean and pure. They keep things like food, medicine, and chemicals safe.
- These filters come in many shapes and sizes. They can be made for different jobs. This makes them useful for many industries.
- Many industries use these filters. These include chemical plants, food factories, and car makers. They help keep processes running smoothly.
- Choosing the right filter is important. Consider what you are filtering. Also, think about temperature and pressure. This ensures the filter works best.
Understanding Stainless Steel Sintered Filters: Manufacturing and Function
The Sintering Process for Stainless Steel Filters
The creation of stainless steel sintered filters involves a precise multi-step manufacturing process. This process transforms fine metal powders into robust, porous filtration media. Each stage contributes to the filter's final structural integrity and filtration capabilities.
Powder Preparation and Blending
The manufacturing process begins with careful selection of high-purity stainless steel powders. Manufacturers often use alloys like 316L or 304, chosen for their specific properties. Workers then blend these powders to achieve a uniform composition. This blending ensures consistent material characteristics throughout the final filter element. Particle size distribution of the powder is critical; it directly influences the pore size and permeability of the finished filter.
Compaction and Shaping Techniques
After powder preparation, manufacturers compact the blended powder into a desired shape. Various techniques achieve this compaction. Cold isostatic pressing (CIP) applies uniform pressure from all directions, creating high-density compacts. Die pressing uses a mold and a punch to form specific shapes like discs or cylinders. These methods create a "green" compact, a fragile pre-sintered form of the filter. The green compact holds its shape but lacks the final strength and porosity.
High-Temperature Sintering for Porosity
Sintering is the core process that gives the filter its strength and porous structure. Manufacturers heat the green compacts in a controlled atmosphere, typically a vacuum or reducing gas, to temperatures below the stainless steel's melting point. This high temperature causes the individual powder particles to bond at their contact points. The particles fuse, forming a strong, interconnected network of pores. The precise control of temperature and duration during this stage determines the final pore size, porosity, and mechanical strength of the filter.
For example, the sintering parameters for 17-4 PH stainless steel compacts demonstrate this precision:
| Material | Sintering Temperature | Sintering Duration |
|---|---|---|
| 17-4 PH stainless steel compacts | 1,240°C | 60 minutes, 120 minutes |
| 17-4 PH stainless steel compacts | 1,340°C | 60 minutes, 120 minutes |
| 17-4 PH stainless steel (tensile bar and cylindrical specimens) | 1,340°C | 60 minutes |
These specific conditions ensure the material achieves optimal properties for demanding applications.
Post-Sintering Treatments and Finishing
After sintering, the filters often undergo additional treatments. These steps enhance their performance and prepare them for use. Sizing or calibration processes ensure precise dimensions and pore uniformity. Manufacturers might also perform annealing to relieve internal stresses and improve ductility. Cleaning procedures remove any residual contaminants from the manufacturing process. Finally, quality control checks verify the filter's integrity, pore size, and overall performance.
How Stainless Steel Sintered Filters Function
Stainless steel sintered filters effectively remove contaminants from fluids and gases through distinct mechanisms. Their unique porous structure allows for both depth and surface filtration, depending on the application and particle size.
Depth Filtration Mechanism Explained
In-depth filtration, the filter media traps particles within its intricate, three-dimensional pore structure. As fluid flows through the filter, particles become lodged in the tortuous pathways and internal cavities. This mechanism is particularly effective for removing a wide range of particle sizes, especially smaller ones. The filter's thickness provides a large internal surface area for particle capture, allowing it to hold a significant amount of contaminants before requiring cleaning or replacement.
Surface Filtration Mechanism Explained
Surface filtration occurs when particles larger than the filter's surface pores are retained directly on the filter's exterior. The filter acts as a sieve, blocking contaminants from passing through. This mechanism is common for larger particles or when a filter has a very uniform and small pore size on its surface. Over time, a "cake" of filtered particles can build up on the surface, which can sometimes enhance filtration efficiency but also increases pressure drop.
Understanding Pore Size Distribution
Pore size distribution describes the range and uniformity of pore openings within the filter material. A narrow pore size distribution indicates that most pores are very close to the specified micron rating. This characteristic is crucial for achieving high filtration efficiency and consistent performance. Manufacturers carefully control the sintering process to achieve the desired pore size distribution. This control ensures the Stainless Steel Sintered Filters meet specific application requirements for particle retention and flow rate.
Key Features of Stainless Steel Sintered Filters
Material Composition and Purity of Stainless Steel Sintered Filters
High-Grade Stainless Steel Alloys
Stainless steel sintered filters utilize premium stainless steel alloys. Manufacturers commonly select grades like 316L and 304. These materials offer excellent corrosion resistance and durability. Their high purity ensures no contamination of the filtered media.
Chemical Inertness and Compatibility
Stainless steel exhibits remarkable chemical inertness. It does not react with most process fluids. This property makes the filters compatible with a wide range of chemicals. Industries can use them in acidic, alkaline, and neutral environments without degradation.
Robust Physical Properties of Sintered Filters
High Mechanical Strength and Integrity
Stainless steel sintered filters possess very high mechanical strength. Their unique construction, often involving five-layer wire mesh sintering, contributes to this robustness. This design provides excellent compressive strength.

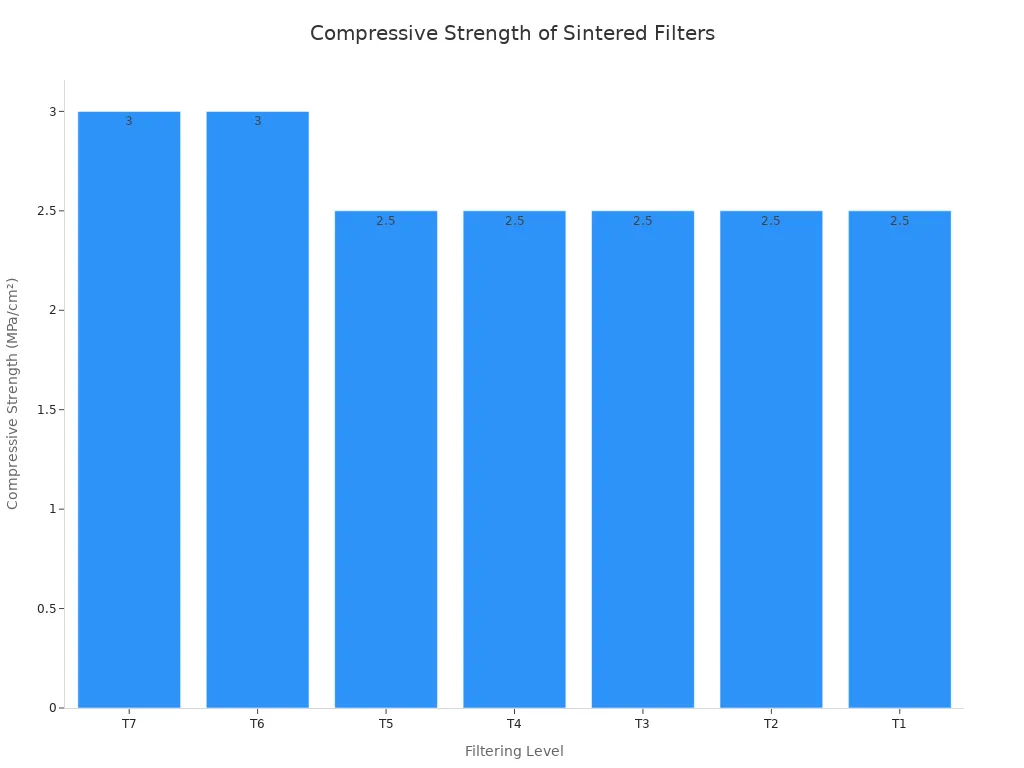

| Filtering Level | Compressive Strength (MPa/cm²) |
|---|---|
| T7 | 3 |
| T6 | 3 |
| T5 | 2.5 |
| T4 | 2.5 |
| T3 | 2.5 |
| T2 | 2.5 |
| T1 | 2.5 |
These filter elements are known for their high mechanical strength and anti-pressure properties.
Thermal Stability Across Temperatures
These filters maintain their integrity across a broad temperature spectrum. Sintered stainless steel filters can operate from -200°C to 800°C. They suit high-temperature applications, with capabilities extending up to 450°C. Duplex stainless steel sintered tube filters demonstrate even greater heat resistance, operating at temperatures up to 900°C.
Pressure Resistance and Durability
Sintered porous filters perform effectively in environments with pressure spikes. They also withstand high temperatures and corrosive conditions. Different product types offer varying pressure tolerances.
| Product Type | Operation Pressure (MPa) | Operation Pressure (psi) |
|---|---|---|
| Exhaust Muffler | 2 | 300 |
| Breather Vent | 1 | 150 |
| Push To Connect Muffler | 1.3 | 180 |
Stainless steel pleated filters offer superior strength and pressure resistance due to their corrugated design. They endure demanding operational settings and high-pressure environments without deforming. In contrast, stainless steel sintered wire mesh filters have lower strength. They are more susceptible to deformation or damage under high pressures.
Precise Filtration Capabilities of Stainless Steel Sintered Filters
Controlled and Uniform Pore Sizes
Manufacturers precisely control the pore sizes during the sintering proecss. This ensures a uniform pore distribution throughout the filter medium. Such control guarantees consistent filtration performance.
High Filtration Efficiency and Retention
These filters achieve high filtration efficiency. They effectively capture and retain contaminants. Their intricate pore structure traps particles, preventing them from passing through.
Consistent Performance Over Time
Stainless steel sintered filters deliver reliable performance consistently. Their robust construction and stable material properties prevent degradation. This ensures steady filtration quality over extended operational periods.
Design Versatility of Sintered Filters
Stainless steel sintered filters offer remarkable design versatility. Manufacturers can tailor these filters to meet diverse industrial requirements. This adaptability makes them suitable for a broad spectrum of applications.
Customizable Shapes and Sizes
Sintered filters come in many shapes and sizes. This customization allows for seamless integration into existing systems. Common forms include cylindrical cartridges, discs, plates, and sheets. Engineers also design conical and pleated filters for specific flow dynamics or increased surface area. For unique applications, manufacturers create custom geometries. This capability ensures optimal fit and performance in specialized equipment. For example, Ningbo Jiehuang Chiyang specializes in developing custom metal parts. They offer solutions for complex filtration challenges. This flexibility in design is a significant advantage. It allows industries to implement precise filtration solutions without extensive system modifications.
Wide Range of Micron Ratings
Sintered filters provide a wide range of micron ratings. A micron rating indicates the size of particles the filter can remove. This range allows for precise control over filtration efficiency. Filters can have coarse ratings for pre-filtration or very fine ratings for critical purification. For instance, a filter might remove particles as large as 200 microns. Another filter might capture particles as small as 0.5 microns. This broad spectrum ensures suitability for various fluid and gas purification tasks. Engineers select the appropriate micron rating based on the desired purity level. This selection also considers the characteristics of the contaminants. The ability to specify exact pore sizes ensures consistent and reliable filtration performance.
Unlocking the Benefits: Why Choose Stainless Steel Sintered Filters
Industries worldwide increasingly choose stainless steel sintered filters for their critical filtration needs. These filters offer a compelling combination of features that translate into significant operational advantages. Their robust construction and advanced filtration capabilities provide long-term value and superior performance in diverse applications.
Enhanced Durability and Longevity of Sintered Filters
Stainless steel sintered filters stand out for their exceptional durability. This characteristic ensures reliable operation and a prolonged lifespan, even in the most challenging industrial settings.
Superior Resistance to Corrosion
Sintered stainless steel filters exhibit remarkable resistance to corrosion. This property makes them highly suitable for harsh environments. Stainless steel inherently resists corrosion. It withstands aggressive chemicals and high temperatures without performance degradation. This makes them ideal for chemical processing and gas filtration. They also show high resistance to corrosion, particularly in harsh environments. They are ideal for applications involving corrosive substances such as acids and alkalis. This makes them a preferred choice in industries like chemical processing, pharmaceuticals, and oil and gas. The choice of stainless steel grade, such as 304, 316, 316L, or 904L, is tailored to the intended use, including specific corrosion resistance requirements.
High-Temperature Resistance
These filters maintain their structural integrity and filtration efficiency across a wide range of temperatures. The sintering process itself involves high heat, which imbues the final product with excellent thermal stability. This allows them to perform reliably in processes involving extreme heat or cold, where other filter types might fail or degrade.
Extended Service Life and Reliability
The inherent strength and corrosion resistance of stainless steel sintered filters contribute to their extended service life. They offer consistent performance over many years, reducing the frequency of replacements.
| Filter Type | Average Lifespan |
|---|---|
| Sintered Bronze Filters | 6 months to 2 years |
| Sintered Stainless Steel Filters | 5+ years (up to 10 years in rigorous environments) |
This extended lifespan translates directly into greater reliability for industrial processes.
Cost-Effectiveness and Sustainability of Stainless Steel Sintered Filters
Beyond their performance, stainless steel sintered filters offer significant economic and environmental advantages. These benefits make them a sustainable choice for modern industries.
Reusability and Ease of Cleaning
One major advantage of these filters is their reusability. Their robust construction allows for effective cleaning and regeneration. Various methods, including backwashing, ultrasonic cleaning, and chemical treatments, can restore their filtration capacity. This reusability significantly reduces waste and the need for frequent replacements.
Reduced Replacement and Maintenance Costs
Reusable stainless steel sintered filters represent a cost-effective investment. They significantly reduce expenses related to repair, maintenance, and labor. They also contribute to increased output rates while lowering labor costs. Their long service life means fewer purchases of new filter elements. This minimizes both material costs and the labor associated with filter changes.
Positive Environmental Impact
Using stainless steel sintered filters contributes positively to environmental sustainability.
- Reduced Waste and Environmental Impact: Stainless steel filter housings are durable and reusable, unlike disposable plastic cartridges. This leads to less landfill waste and reduced resource consumption for manufacturing and disposal. Their durability also minimizes breakage and leaks.
- Energy Efficiency and Cost Savings: Stainless steel's excellent heat conductivity can reduce energy consumption and operating costs. Less frequent filter changes also contribute to energy savings.
- Improved Water Quality: These filters effectively remove contaminants. They ensure clean and safe water for industrial and commercial processes. This minimizes pollution and protects natural water sources.
- Recyclability and Reusability: Stainless steel filter housings are easily recyclable at the end of their life. They can also be refurbished and reused. This extends their lifespan and reduces the need for new materials.
- Regulatory Compliance and Corporate Responsibility: Using stainless steel filters helps businesses meet environmental regulations. It also demonstrates a commitment to sustainability. This enhances their reputation and aligns with environmental protection goals.
Superior Performance in Demanding Environments
Stainless steel sintered filters excel in applications where conditions are harsh and performance requirements are stringent. Their design and material properties ensure optimal operation.
Broad Chemical Compatibility
The chemical inertness of stainless steel allows these filters to handle a wide array of aggressive chemicals. They do not react with process fluids. This prevents contamination and ensures the purity of the filtered product. This broad compatibility makes them suitable for diverse chemical processes.
High Flow Rates with Low Pressure Drop
The precisely controlled pore structure of sintered filters allows for efficient fluid flow. This results in high flow rates while maintaining a low pressure drop across the filter. A low pressure drop reduces energy consumption for pumps and compressors. It also contributes to overall system efficiency.
Minimal Contaminant Release
The stable and non-shedding nature of sintered stainless steel ensures minimal contaminant release into the filtered stream. Unlike some fibrous media, sintered metal does not shed particles. This guarantees high purity levels for critical applications, such as in pharmaceutical or food processing industries.
Operational Efficiency with Stainless Steel Sintered Filters
Operational efficiency is a critical factor for any industrial process. Stainless Steel Sintered Filters significantly enhance this efficiency through their robust design and reliable performance. They contribute to smoother operations, reduced costs, and higher product quality.
Reduced Downtime and Maintenance
These filters play a crucial role in minimizing operational downtime. Their exceptional durability means they require less frequent replacement compared to conventional filter media. This directly translates into fewer interruptions for filter changes. Maintenance teams spend less time on routine filter servicing. The filters' reusability further simplifies maintenance protocols. Cleaning procedures for sintered filters are often straightforward and highly effective. This allows for rapid restoration of filtration capacity. Equipment can return to service quickly. Industries experience fewer production schedule disruptions. This leads to higher overall productivity and continuous operation.
Consistent Product Quality and Purity
Stainless steel sintered filters ensure a consistently high level of product quality. Their precisely controlled pore sizes guarantee effective removal of contaminants. This results in a reliably pure output. The chemical inertness of stainless steel prevents unwanted reactions with process fluids. It avoids introducing impurities into the product stream. Unlike some fibrous filter media, sintered metal does not shed particles. This eliminates a potential source of secondary contamination. Manufacturers can confidently meet stringent quality standards. They also reduce the risk of costly product batch rejections. This consistent purity is vital for sensitive applications in industries like pharmaceuticals, food and beverage, and specialty chemicals.
Types and Configurations of Stainless Steel Sintered Filters
Manufacturers produce Stainless Steel Sintered Filters in various forms. These diverse configurations meet specific industrial demands. Their design versatility allows for optimal integration into different systems.
Common Shapes of Sintered Filters
Sintered filters come in many standard and custom shapes. This variety ensures suitability for a wide range of applications.
Cylindrical Cartridges and Elements
Cylindrical cartridges are a very common form. They offer a large filtration surface area within a compact design. Engineers often use them in housing units for fluid and gas filtration. These elements provide efficient particle removal.
Discs, Plates, and Sheets
Manufacturers also produce sintered filters as discs, plates, and sheets. Discs are useful for small-scale filtration or as diffusers. Plates and sheets serve as larger filtration barriers or support structures. They find applications in various industrial processes.
Conical and Pleated Filters
Conical filters offer enhanced flow characteristics. Their shape aids in particle separation. Additionally, pleated filters increase the effective surface area. This design allows for higher flow rates and extended service life.
Custom Geometries for Specific Needs
Beyond standard shapes, manufacturers create custom geometries. These specialized designs address unique application requirements. This customization ensures precise fit and optimal performance in complex systems.
Micron Rating and Porosity in Sintered Filters
Understanding micron rating and porosity is crucial for filter selection. These parameters define the filter's performance.
Absolute vs. Nominal Filtration Ratings
Filters have either absolute or nominal filtration ratings. An absolute rating indicates the smallest particle size a filter can consistently remove with 99.9% efficiency. A nominal rating describes the average particle size a filter can capture. It typically refers to 50% to 98% efficiency.
Range of Available Micron Sizes
Sintered filters offer a broad spectrum of micron sizes. This range allows for precise control over filtration levels. Filters can remove particles from coarse (e.g., 200 microns) down to very fine (e.g., 0.5 microns).
Understanding Porosity Levels
Porosity refers to the percentage of void space within the filter material. Higher porosity generally means higher flow rates. It can also affect mechanical strength. Manufacturers carefully control porosity during the sintering process.
Stainless Steel Grades for Sintered Filters
The choice of stainless steel grade impacts filter performance. Different grades offer varying properties.
316L Stainless Steel for Corrosion Resistance
316L stainless steel is a popular choice. It offers superior corrosion resistance. This grade is ideal for applications involving aggressive chemicals or high salinity. Its low carbon content also minimizes carbide precipitation during welding.
304 Stainless Steel for General Applications
304 stainless steel is suitable for general-purpose filtration. It provides good corrosion resistance and strength. This grade is cost-effective for many standard industrial uses.
Duplex and Super Duplex Stainless Steel for Extreme Conditions
Duplex and Super Duplex stainless steels offer enhanced properties. They combine high strength with excellent corrosion resistance. These grades are essential for extreme conditions. They perform well in highly corrosive environments or at elevated temperatures.
Selecting the Right Stainless Steel Sintered Filter for Your Application
Choosing the correct Stainless Steel Sintered Filters is crucial for optimal performance and efficiency. A careful evaluation of specific application needs ensures the filter meets all operational demands. This selection process involves understanding the process environment and desired outcomes.
Assessing Application Requirements for Sintered Filters
Engineers must thoroughly assess several key factors. These factors guide the selection of the most suitable filter.
Fluid Type, Viscosity, and Chemistry
The nature of the fluid significantly impacts filter choice. Consider the fluid's type, such as liquid or gas. Its viscosity affects flow rates and pressure drop. The chemical composition dictates the required corrosion resistance of the filter material. Aggressive chemicals demand specific stainless steel grades.
Operating Temperature and Pressure Conditions
Filters must withstand the process's operating temperature and pressure. Extreme temperatures can affect filter integrity. High pressures require filters with robust mechanical strength. Always select a filter rated for the maximum expected conditions.
Desired Filtration Efficiency and Purity
The required level of filtration efficiency determines the filter's micron rating. This rating specifies the smallest particle size the filter can remove.
- The filter's micron rating should be smaller than the particles needing removal. For example, use a 1-micron filter for 5-micron particles.
- Balance flow rate and pressure. A very fine filter can clog faster and reduce efficiency. It also causes pressure drops. A coarse filter might not filter effectively.
- Meet industry standards and regulations. Industries like pharmaceuticals and electronics often dictate required micron ratings, such as 1 micron or finer.
Characteristics of Contaminants
Identify the type and size of contaminants present in the fluid.
- Coarse filters (e.g., 100 μm) remove visible debris. Sub-micron filtration is necessary for invisible bacteria or colloids.
- Required filtration efficiency varies by application. Pre-filtration might use 50–100 μm filters. Final filtration for high purity or sterility requires 0.2–5 μm filters.
Sizing and Flow Rate Considerations for Stainless Steel Sintered Filters
Proper sizing ensures the filter handles the required volume efficiently.
Required Flow Capacity and Throughput
Determine the necessary flow capacity and throughput for the process. The filter must accommodate the maximum flow rate without excessive pressure drop. An undersized filter can lead to frequent clogging and reduced efficiency.
Pressure Drop Calculations and Optimization
Pressure drop calculations are essential for evaluating system performance. They ensure reliable operation. This involves determining the resistance the fluid encounters when passing through the filter media. Operators measure the pressure differential between the inlet and outlet sides under specific flow conditions. Understanding this relationship helps optimize flow rates for maximum efficiency. The differential pressure (ΔP) for stainless steel sintered filters can be calculated using the formula: ΔP = (K × μ × L × Q^2) / (d^4 × ρ) Here, ΔP is differential pressure, K is the resistance coefficient, μ is dynamic viscosity, L is filter length, Q is volume flow rate, d is wire diameter, and ρ is fluid density.
Filter Area and Configuration Optimization
Optimize the filter area and configuration to match flow requirements. A larger filter area generally allows for higher flow rates and longer service life. Consider configurations like pleated elements for increased surface area.
Material Compatibility for Optimal Performance
Material compatibility is critical for filter longevity and process integrity.
Chemical Resistance Needs of the Process
Ensure the filter material resists all chemicals in the process stream. Stainless steel grades like 316L offer superior corrosion resistance for aggressive environments.
Potential Interactions with Process Fluids
Verify that the filter material does not react with or leach into the process fluid. This prevents contamination and maintains product purity.
Maintenance and Longevity of Stainless Steel Sintered Filters
Proper maintenance significantly extends the lifespan and ensures the consistent performance of filtration systems. Regular cleaning and adherence to best practices are crucial for maximizing the value of Stainless Steel Sintered Filters.
Effective Cleaning and Regeneration Methods for Sintered Filters
Operators can restore the filtration capacity of sintered filters through various effective cleaning methods. The choice of method often depends on the type of contaminant.
Backwashing and Back-Pulsing Techniques
Backwashing involves reversing the flow of fluid through the filter element. This action dislodges trapped particles from the filter's pores. Back-pulsing uses short, high-pressure bursts of fluid in reverse. Both techniques effectively remove accumulated debris, restoring flow and efficiency.
Ultrasonic Cleaning Procedures
Ultrasonic cleaning employs high-frequency sound waves in a liquid bath. These waves create microscopic bubbles that implode, dislodging contaminants from the filter's intricate pore structure. This method proves particularly effective for removing inert or insoluble solids. For optimal results, operators often use ultrasonic cleaning with detergent (60 watts per gallon, 10-60 minutes), applying reverse flow.
Chemical Cleaning Solutions and Protocols
Chemical cleaning involves soaking the filter in a suitable solution to dissolve or loosen contaminants. The specific chemical depends on the nature of the fouling agent.
| Contaminant Type | Recommended Cleaning Method |
|---|---|
| Organic-rich or carbon-prone contaminants | Thermal cleaning in a controlled furnace (350-450 °C) to burn off residual organics |
| Loose debris | Rinsing with water |
| Clogged dirt | Soaking in a solution of mild detergent and warm water |
| Mineral contaminants | Soaking in a vinegar-and-water solution |
| General contaminants | Water (any temperature), Alcohols, Acetone, Ammonia, Organic solvents, Methylene chloride, Solvents, and detergents |
| Grease | Industrial cleaners such as Oakite 31 or Sonicor #103 |
Thermal Cleaning for Organic Contaminants
Thermal cleaning uses heat to remove organic contaminants. Operators place filters in a controlled furnace, typically at 350-450 °C. This process burns off residual organics, leaving the filter clean.
Best Practices for the Extended Lifespan of Stainless Steel Sintered Filters
Adopting best practices ensures filters perform optimally for longer periods.
Regular Inspection and Performance Monitoring
Routine inspections help identify potential issues early. Monitoring pressure differentials and flow rates provides critical insights into filter performance. Consistent tracking helps predict maintenance needs.
Proper Handling, Installation, and Storage
Correct handling prevents physical damage. Proper installation ensures the filter seats correctly and functions as intended.
- Store sintered metal filters in a clean, dry environment to prevent contamination and corrosion.
- Use protective packaging or covers to shield filters from dust and debris.
- Handle filters with care to avoid physical damage.
- Use clean, lint-free gloves when manipulating filters.
Adherence to Operating Parameters and Limits
Operating filters within specified temperature, pressure, and flow rate limits prevents premature wear and failure. Exceeding these parameters can compromise the filter's structural integrity and filtration efficiency.
When to Replace Your Stainless Steel Sintered Filter
Even with diligent maintenance, filters eventually require replacement. Recognizing the signs of decline prevents system failures.
Identifying Signs of Physical Degradation
Visible signs of damage, such as cracks, deformation, or severe corrosion, indicate a need for replacement. Physical degradation compromises the filter's ability to retain particles effectively.
Monitoring Performance Decline Indicators
Several indicators signal a filter's reduced effectiveness.
- Monitoring pressure differentials
- Regular inspections
- Following the manufacturer's recommended replacement intervals
A significant and irreversible increase in pressure drop, despite cleaning, often indicates irreversible clogging or damage.
Recommended Replacement Intervals and Schedules
Manufacturers often provide recommended replacement intervals based on typical operating conditions. Adhering to these schedules, combined with performance monitoring, ensures continuous optimal filtration.
Diverse Applications of Stainless Steel Sintered Filters Across Industries
Stainless Steel Sintered Filters serve critical roles across numerous industries. Their unique properties make them indispensable for demanding filtration tasks. These filters ensure product purity, process efficiency, and environmental compliance in various sectors.
Chemical and Petrochemical Industry Applications
The chemical and petrochemical industries rely heavily on robust filtration solutions. Stainless Steel Sintered Filters provide the necessary durability and resistance for these challenging environments.
Catalyst Recovery and Retention
Operators use these filters for catalyst recovery and retention. They effectively filter aggressive solvents, acids, and catalysts in chemical processes. Their resistance to harsh chemicals prevents degradation. In the petrochemical industry, these filters are crucial for gas scrubbing, oil refining, and catalyst recovery. Sintered metal filters, formed by fusing stainless steel powder, offer deep filtration for fine particles. Their durability, high-temperature resistance, and corrosion resistance make them ideal for demanding industrial applications such as the petrochemical industry and oil refineries.
Polymer Melt and Resin Filtration
Manufacturers employ sintered filters for polymer melt and resin filtration. They remove impurities from molten polymers, ensuring high-quality end products. This application demands filters capable of operating at elevated temperatures and pressures.
Solvent Purification and Recovery
These filters play a vital role in solvent purification and recovery. They efficiently remove particulates from solvents, allowing for their reuse. This process reduces waste and operational costs.
Food and Beverage Processing Applications
The food and beverage industry requires stringent hygiene and purity standards. Stainless Steel Sintered Filters meet these demands with their cleanability and inertness.
Clarification of Beverages and Liquids
Producers use these filters for clarifying beverages and other liquids. They remove suspended solids, improving product appearance and stability. This ensures a clear and appealing final product.
Culinary Steam Filtration
Sintered filters purify culinary steam. They remove rust, scale, and other particulates from steam used in direct contact with food products. This maintains product safety and quality.
Edible Oil and Fat Filtration
These filters effectively remove impurities from edible oils and fats. This process enhances the quality, shelf life, and safety of food products.
Pharmaceutical and Biotechnology Applications
The pharmaceutical and biotechnology sectors demand the highest levels of sterility and purity. Stainless Steel Sintered Filters are essential for these critical processes.
Sterile Filtration of Liquids and Gases
These filters are crucial for the sterile filtration of liquids and gases. They remove particulate, microbial, and chemical contaminants. This ensures product sterility and safety.
- Microbial Control in Fermentation and Bioreactors: Sintered stainless steel filter cartridges remove microorganisms and contaminants from process streams. Their porous structure ensures efficient particle retention. This maintains product integrity and purity. It also promotes healthy microbial growth in culture systems.
- Purification of Biological Samples: These filters isolate and purify biological molecules. They include proteins, DNA, RNA, and other biomolecules. Their unique porous structure allows for efficient particle retention and fluid flow. This ensures high purity and yield in biotechnological research, pharmaceutical development, and diagnostic applications.
Cell Retention and Separation
Biotechnology processes use sintered filters for cell retention and separation. They efficiently separate cells from culture media. This is a key step in many biopharmaceutical manufacturing processes.
Active Pharmaceutical Ingredient (API) Purification
Sintered metal filters are vital for producing ultra-pure water, sterile air, and filtering active pharmaceutical ingredients (APIs). They ensure product sterility and remove bacterial contaminants. For biotechnology, they are used in fermentation processes, cell culture systems, and downstream purification.
| Feature/Application | Description |
|---|---|
| Material | Premium-grade SS 304 or SS 316L stainless steel for superior strength, corrosion resistance, and hygiene. |
| Purpose | Engineered for high-efficiency filtration, removing particulate, microbial, and chemical contaminants from liquids and gases. |
| Key Features | Durable construction, compatibility with various filter cartridges, high flow capacity with low-pressure drop, easy to clean (CIP/SIP compatible), and designed to meet GMP, FDA, and ASME standards. |
| Pharmaceutical Use | Liquid and gas filtration in pharmaceutical formulations. |
| Biotechnology Use | Sterile process filtration, contaminant removal, water and solvent filtration in lab/pilot setups, and pre-filtration/final filtration in cleanroom environments. |
Water Treatment and Environmental Applications
Stainless Steel Sintered Filters play a vital role in protecting our environment and ensuring clean water. Their robust nature makes them suitable for demanding environmental processes.
Industrial Wastewater Filtration
Industries generate significant amounts of wastewater. These filters effectively remove suspended solids, heavy metals, and other pollutants from industrial effluent. This process helps companies meet strict environmental discharge regulations. It also protects natural water bodies from contamination.
Potable Water Purification
Ensuring access to clean drinking water is crucial. These filters contribute to potable water purification systems. They remove particulates, sediment, and microorganisms from raw water sources. This provides safe and clean water for communities. Their durability and reusability make them a sustainable choice for long-term water treatment.
Air and Gas Particulate Filtration
Environmental applications extend to air and gas purification. Stainless Steel Sintered Filters capture fine particulates from industrial exhaust gases. They also filter air streams in sensitive environments. This reduces air pollution and improves air quality. Their high-temperature resistance allows them to operate in hot gas streams.
Automotive and Aerospace Industry Applications
The automotive and aerospace sectors demand high-performance components. These industries rely on the precision and durability of sintered filters for critical systems.
Fuel and Lubricant Filtration
Automotive engines and aerospace systems require clean fuel and lubricants. These filters remove contaminants from fuel lines and lubrication systems. This protects sensitive engine components from wear and damage. They ensure optimal performance and extend the lifespan of machinery.
Hydraulic Fluid and Transmission Filtration
Hydraulic systems and transmissions operate under high pressure. They need extremely clean fluids. Sintered metal fiber felt is utilized in both the aerospace and automotive industries. In aerospace, it is crucial for critical filtration processes that demand high precision and reliability. For the automotive sector, its resilience to high temperatures and pressures makes it ideal for engine and hydraulic system filtration. These filters maintain the purity of hydraulic fluid and transmission oil. This prevents system malfunctions and ensures smooth operation.
Exhaust Gas Filtration and Emission Control
Modern vehicles and aircraft require advanced emission control. Stainless Steel Sintered Filters contribute to exhaust gas filtration. They capture particulate matter from exhaust streams. This helps reduce harmful emissions. Their high-temperature stability allows them to function effectively in hot exhaust environments. This supports compliance with stringent emission standards.
Stainless Steel Sintered Filters play an indispensable role in modern industrial processes. They offer superior durability, precise filtration, and remarkable versatility. These filters ensure product purity and operational efficiency across diverse sectors. Their reusability and robust design provide significant cost-effectiveness and sustainability. The future promises continued advancements in sintered filtration technology, further enhancing its capabilities.
FAQ
What are stainless steel sintered filters?
Stainless steel sintered filters are rigid, porous media. Manufacturers create them from compressed and heated stainless steel powders. They form a strong, interconnected pore structure. These filters effectively remove contaminants from fluids and gases.
How do manufacturers make sintered filters?
Manufacturers begin with high-purity stainless steel powders. They compact these powders into a desired shape. Then, they heat the compacts below the melting point. This sintering process bonds particles, creating a porous structure.
What are the main benefits of using these filters?
These filters offer exceptional durability and high-temperature resistance. They provide precise filtration efficiency. Users also benefit from their reusability and chemical inertness. This leads to cost-effectiveness and long service life.
Can users clean and reuse sintered filters?
Yes, users can clean and reuse sintered filters. Their robust construction allows for various cleaning methods. These include backwashing, ultrasonic cleaning, and chemical treatments. This reusability reduces waste and replacement costs.
Which industries commonly use these filters?
Many industries use these filters. They include chemical, petrochemical, food and beverage, and pharmaceutical sectors. Water treatment, automotive, and aerospace industries also rely on them. They perform critical filtration tasks in diverse applications.
How does one choose the right filter?
One chooses the right filter by assessing application requirements. Consider fluid type, operating temperature, and pressure. Evaluate desired filtration efficiency and contaminant characteristics. Material compatibility and flow rate are also crucial factors.
What is the typical lifespan of a sintered filter?
Sintered stainless steel filters offer an extended service life. They often last 5+ years, even in rigorous environments. Their durability and corrosion resistance contribute to this longevity. Proper maintenance further extends their operational period.
