Electroless Nickel Plating
Electroless Nickel Plating uses a chemical process to deposit a nickel-phosphorus alloy coating on various materials without electricity. This technique creates a uniform, protective metal layer that increases durability and corrosion resistance. The process achieves consistent coating thicknesses from 1 to 40 µm and phosphorus content between 2% and 15%, making it suitable for both conductive and non-conductive substrates.
| Parameter | Value/Range | Significance |
|---|---|---|
| Coating Thickness | 1 to 40 µm | Adapts to many applications |
| Phosphorus Content | 2% to 15% | Impacts corrosion resistance and ductility |
| Uniformity of Coating | Very consistent | Ensures full coverage on complex shapes |
- NiP interlayers can reduce corrosion current density by up to 25 times in challenging environments.
- Composite coatings reach hardness levels of 785 HV and improve wear resistance by 1.5 times.
- Friction coefficients drop significantly, enhancing surface performance.
Key Takeaways
- Electroless Nickel Plating creates a uniform, protective nickel coating without using electricity, making it ideal for complex shapes and various materials.
- The process improves corrosion resistance, hardness, and wear protection, extending the life and reliability of parts in industries like automotive, aerospace, and medical devices.
- Coating thickness and phosphorus content can be adjusted to balance durability, corrosion protection, and surface smoothness for specific needs.
- The plating involves careful surface preparation, catalyst activation, and controlled chemical reactions to ensure consistent quality and performance.
- This method offers cost and environmental benefits by reducing equiPment needs and enabling safer chemical handling with proper controls.
How Electroless Nickel Plating Works
The Chemical Reduction Process
Electroless Nickel Plating relies on a unique chemical reduction process. This method does not require an external electrical current. Instead, a reducing agent in the plating bath donates electrons to nickel ions, causing them to deposit as a metal layer on the substrate. Common reducing agents include sodium borohydride and dimethylamine borane. These agents oxidize during the reaction, enabling the nickel ions (Ni²⁺) to transform into solid nickel metal.
The process begins with mechanical preparation of the substrate. Once the surface is ready, the chemical reduction starts. The reaction is autocatalytic, meaning it continues as long as the substrate or the deposited nickel provides a catalytic surface. The bath composition, temperature, and pH all influence the deposition rate and the final properties of the coating. For example, boron content and additives like zinc acetate can change the hardness and wear resistance of the nickel layer. As-plated coatings can reach hardness values between 550 and 750 HV, and heat treatment can increase this to over 950 HV.
Note: The chemical reaction can be summarized as:
Metal ions (Mⁿ⁺) + Reducing agent → Metal (M solid) + Oxidized species.
Researchers have observed that the process occurs in distinct phases:
- An induction period with no visible nickel deposition.
- Formation and growth of small nodules.
- Densification as voids fill and the structure becomes columnar.
- Growth and refinement of these columns, influenced by local chemical variations.
These phases have been confirmed using advanced imaging and chemical analysis techniques, such as SEM and GD-OES.
Differences from Electroplating
Electroless Nickel Plating differs from traditional electroplating in several important ways. Electroplating uses an external electrical current to drive the deposition of metal ions onto a substrate. In contrast, electroless plating depends entirely on chemical reactions.
| Feature | Electroless Nickel Plating | Electroplating |
|---|---|---|
| Power Source | Chemical (no electricity) | Electrical current |
| Coating Uniformity | High, even on complex shapes | Variable, often uneven |
| Substrate Compatibility | Conductive & non-conductive | Conductive only |
| Equipment Complexity | Simple | Requires power supply |
| Operational Cost | Lower | Higher |
- Electroless Nickel Plating eliminates the need for electrical generating devices, which reduces operational costs.
- The process provides a uniform coating thickness, even on complex or irregular surfaces, which electroplating often cannot achieve.
- The method works on both conductive and non-conductive substrates, making it highly versatile.
- Nickel, the primary metal used, is generally less expensive than precious metals like silver or gold.
Experimental data shows that the deposition rate and thickness accuracy remain consistent across different substrate types. For example, non-polished silicon carbide substrates achieve a plating thickness of 33.82 μm, very close to the expected 33.26 μm, with a deposition rate of 6.65 μm/h.
Basic Steps Involved
The Electroless Nickel Plating process follows a series of carefully controlled steps. Each step ensures the final coating meets the required standards for thickness, uniformity, and performance.
-
Surface Preparation:
The substrate undergoes cleaning and pretreatment. For polymers, technicians introduce functional groups to improve catalyst adhesion. For metals, they remove oxides and contaminants. -
Catalyst Activation:
Metal nanoparticle catalysts, such as palladium or silver, are adsorbed onto the substrate. These particles activate the surface, allowing nickel ions in the plating solution to deposit. -
Plating Bath Immersion:
The substrate is immersed in the plating bath. The chemical reduction process begins, and technicians control the coating time to achieve the desired thickness. Typical times range from 5 minutes to 1 hour. -
Monitoring and Analysis:
Analytical techniques like EDX and XRD confirm the presence and quality of the nickel coating. SEM imaging tracks the growth and distribution of the layer. -
Process Optimization:
Operators maintain solution loading within guidelines and adjust agitation to control plating quality. Air agitation helps reduce pitting in thicker coatings. They monitor chemistry and collaborate with suppliers to tailor the process for specific applications.
Tip: Increasing agitation can speed up plating but may cause edge effects. Reducing agitation improves corrosion resistance and passivity.
Statistical studies show that the degree of crystallinity and coating thickness increase with longer plating times. For example, crystallinity rises from 49.66% at 5 minutes to nearly 90% at 1 hour. These results confirm the importance of precise process control for optimal coating performance.
Key Benefits of Electroless Nickel Plating
Uniform Coating on Complex Shapes
Electroless Nickel Plating stands out for its ability to deliver a uniform coating, even on parts with intricate geometries. The process does not rely on electrical current, so the nickel-phosphorus alloy deposits evenly across all surfaces, including internal cavities, threads, and sharp edges. In aerospace applications, photomicrographs reveal that hard particles such as diamond disperse consistently throughout the coating. This uniformity ensures that every area of the component receives the same level of protection and performance.
Microspot X-ray fluorescence (XRF) provides real-time, non-destructive measurement of coating thickness and composition. This technology confirms that the plating process achieves micrometer-level precision, even on complex shapes. High-definition detectors can measure both phosphorus and nickel content, ensuring the coating meets strict industry standards. Uniform coatings prevent weak spots, which could otherwise lead to premature failure in demanding environments.
Tip: Uniform coatings help maintain dimensional tolerances, which is critical for parts that must fit together precisely.
Enhanced Corrosion Resistance
Electroless Nickel Plating creates a robust barrier that shields the underlying material from corrosive environments. The nickel-phosphorus alloy forms a continuous, pore-free layer that blocks moisture, chemicals, and other corrosive agents. This property proves essential in industries such as aerospace, automotive, and chemical processing, where components face harsh operating conditions.
- AMS-C-26074, a leading aerospace standard, documents the requirements for electroless nickel coatings. This standard ensures that coatings provide reliable corrosion protection and meet strict quality control measures.
- The process allows for customization of phosphorus content, which can be adjusted to optimize corrosion resistance for specific applications.
- Rigorous testing protocols, including adhesion, thickness, and corrosion resistance tests, verify that each coating meets performance expectations.
Consistent corrosion protection extends the service life of critical components, reducing maintenance costs and downtime.
Increased Hardness and Wear Resistance
Electroless Nickel Plating significantly improves the hardness and wear resistance of treated surfaces. The nickel-phosphorus alloy, especially when combined with additives like boron nitride or nanosize diamond particles, delivers superior performance compared to standard coatings. Abrasion tests on composite coatings show a dramatic reduction in wear losses, with some formulations approaching the durability of hard chrome.

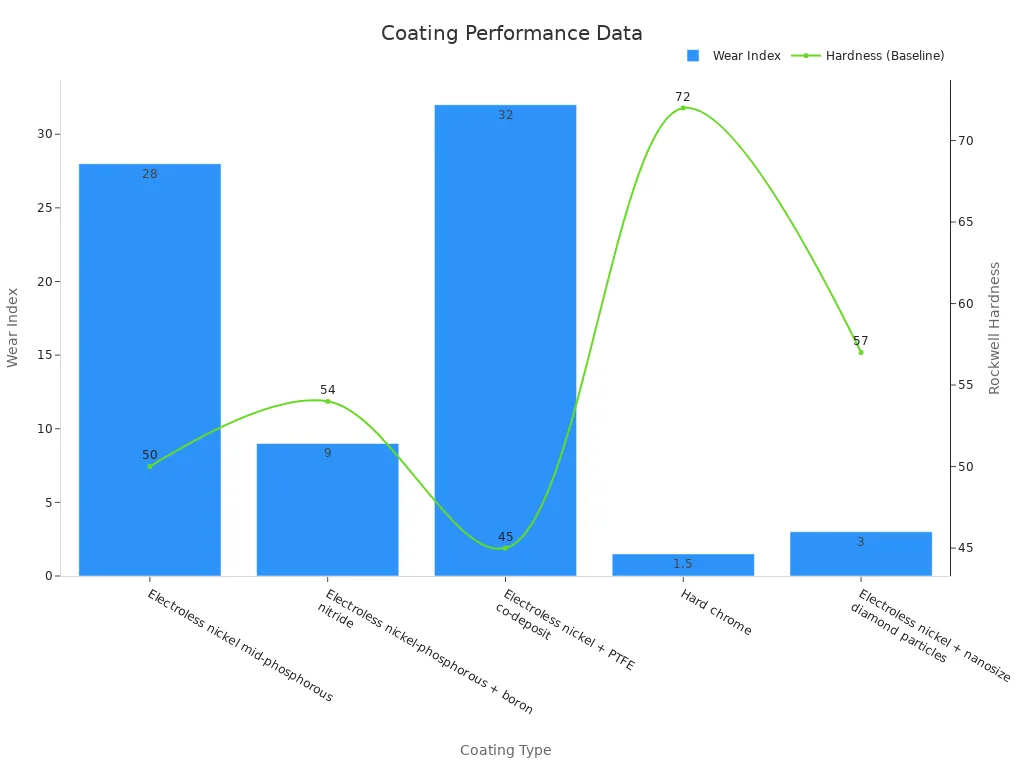

| Coating Type | Wear Index (ASTM D4060) | Rockwell Hardness (ASTM E-18) | Notes on Performance |
|---|---|---|---|
| Electroless nickel mid-phosphorous | 28 | 50 | Baseline electroless nickel coating |
| Electroless nickel-phosphorous + boron nitride | 9 | 54 (67 post-bake) | Improved wear resistance and hardness |
| Electroless nickel + PTFE co-deposit | 32 | 45 | Lower hardness and higher wear index |
| Hard chrome | 1.5 | 72 | Best wear resistance and hardness overall |
| Electroless nickel + nanosize diamond particles | 3 | 57 (70 post-bake) | Near hard chrome performance, highest among Ni coatings |
Mid-phosphorus electroless nickel coatings, after heat treatment, show the lowest wear volume and highest hardness among nickel-based coatings. The formation of a nickel oxide layer during heat treatment further reduces wear by acting as a dry lubricant. These properties make electroless nickel coatings ideal for parts exposed to friction, abrasion, or high temperatures.
Note: The aerospace industry relies on these coatings for landing gear, turbine blades, and engine parts, where durability and reliability are critical.
Improved Lubricity and Surface Properties
Surface properties play a critical role in determining the performance and longevity of industrial components. Lubricity, or the ability of a surface to reduce friction, directly impacts wear, energy efficiency, and operational reliability. Engineers often select coatings that enhance these characteristics, especially for parts exposed to sliding or rotating contact.
Electroless nickel coatings deliver significant improvements in both lubricity and surface finish. The plating process produces a uniform, nodular texture that minimizes waviness and distributes stress evenly across the surface. After finishing with flexible abrasive tools, the surface roughness can reach as low as 9 nanometers. This ultra-smooth finish reduces friction and helps prevent the initiation of micro-cracks or wear tracks.
| Metric | Description / Result |
|---|---|
| Surface Roughness | Reduced to as low as 9 nm after finishing with flexible abrasive tool |
| Hardness | More than double the hardness of the stainless steel substrate |
| Wear Resistance | High wear resistance demonstrated by tribological testing |
| Coefficient of Friction | Lowest coefficient of friction achieved on finished surface |
| Plating Composition | Uniform plating with ~90% nickel and 10% phosphorus |
| Surface Morphology | Uniform distribution with nodular texture and waviness |
| Effect of Phosphorus Content | >10% phosphorus leads to amorphous structure, improves corrosion resistance with slight hardness loss |
| Finishing Method | Flexible abrasive tools reduce surface roughness and friction without damaging thin plating layers |
Flexible abrasive finishing tools offer a unique advantage. These tools apply uniform pressure and adapt elastically to the shape of the workpiece. They remove surface asperities without deforming the component or damaging the thin nickel layer. Unlike rigid tools, flexible abrasives lower contact stress on surface peaks and minimize heat generation. This approach enables ultra-precision surface finishes, which further improve lubricity and wear resistance.
Tip: A smoother, harder surface not only reduces friction but also extends the lifespan of moving parts. Lower friction means less heat generation and reduced energy loss during operation.
The composition of the plating also influences surface properties. A phosphorus content above 10% creates an amorphous structure, which enhances corrosion resistance. However, this may slightly reduce hardness. Engineers can adjust the phosphorus level to balance lubricity, hardness, and corrosion protection for specific applications.
Tribological testing confirms that these coatings achieve high wear resistance and the lowest coefficients of friction among common industrial finishes. The combination of uniform morphology, optimized composition, and advanced finishing methods ensures that components maintain their performance even under demanding conditions.
Types of Electroless Nickel Plating
Electroless nickel coatings are classified by their phosphorus content, which directly influences their microstructure and performance. The three main categories—high-phosphorus, medium-phosphorus, and low-phosphorus—offer distinct advantages for different industrial applications. Researchers use advanced techniques such as scanning electron microscopy (SEM), transmission electron microscopy (TEM), X-ray diffraction (XRD), and differential scanning calorimetry (DSC) to analyze these coatings. These methods reveal how phosphorus content affects grain size, crystallinity, and phase transformations.
| Phosphorus Content Category | Typical P Content Range | Microstructure Characteristics | Key Properties and Effects |
|---|---|---|---|
| Low Phosphorus (Low-P) | < 5% | Crystalline or nanocrystalline | Higher melting point (~1300 °C), magnetic as-plated, better solderability after plating, high wear resistance |
| Medium Phosphorus (Med-P) | ~5-9% | Mixture of amorphous and nanocrystalline | Melting point decreases (~890 °C), intermediate magnetic and mechanical properties |
| High Phosphorus (High-P) | 10-16% | Fully amorphous | Non-magnetic as-plated, lower melting point (~890 °C), increased electrical resistivity, improved corrosion resistance |
High-Phosphorus Coatings
High-phosphorus coatings contain between 10% and 16% phosphorus. These coatings form a fully amorphous structure, which provides excellent corrosion resistance. Percentage composition analysis shows that coatings with around 13% phosphorus outperform those with lower phosphorus levels in harsh environments. The amorphous structure blocks microgalvanic interactions, reducing the risk of localized corrosion. High-phosphorus coatings also exhibit non-magnetic properties and increased electrical resistivity. Industries such as chemical processing and electronics often select these coatings for their superior barrier protection.
Note: High-phosphorus coatings have a lower melting point, around 890 °C, and respond differently to heat treatment compared to other types.
Medium-Phosphorus Coatings
Medium-phosphorus coatings typically contain 5% to 9% phosphorus. Their microstructure combines amorphous and nanocrystalline regions, resulting in a balance between hardness and corrosion resistance. Testing shows that medium-phosphorus coatings achieve higher hardness than high-phosphorus types, while still offering good corrosion protection. Wear resistance improves further when these coatings are layered in a graded structure. Many manufacturers choose medium-phosphorus coatings for applications that require both durability and moderate corrosion resistance, such as automotive and machinery parts.
Low-Phosphorus Coatings
Low-phosphorus coatings have less than 5% phosphorus and display a crystalline or nanocrystalline structure. These coatings provide the highest hardness and wear resistance among the three types. Empirical data shows that thin low-phosphorus films enhance mechanical interlocking and substrate roughness, increasing adhesion strength by up to 50%. However, increasing the thickness of these coatings can reduce adhesion due to internal stress and micro-cracks. Low-phosphorus coatings also maintain magnetic properties and a higher melting point, making them suitable for applications that demand excellent wear resistance and solderability.
Tip: Optimal low-phosphorus coating thickness, around 3.5 μm, balances adhesion and corrosion resistance for best performance.
Electroless Nickel Plating Applications
Automotive and Aerospace Components
Automotive and aerospace manufacturers rely on advanced coatings to meet strict performance and safety standards. Electroless nickel coatings provide essential protection for engine parts, fuel systems, bolts, fasteners, and brake components. These coatings deliver corrosion resistance, wear resistance, and durability, which extend the lifespan of critical parts. The automotive industry’s focus on lightweight and fuel-efficient vehicles increases the demand for high-performance coatings. In aerospace, uniform coating thickness and excellent adhesion help components withstand extreme temperatures, high pressure, and harsh environments. The industry uses these coatings on turbines, landing gear, and other parts exposed to high stress. North America and Europe lead the market, driven by automotive and aerospace demand, while Asia Pacific shows rapid growth due to expanding manufacturing sectors. The U.S. and EU policies supporting electric vehicles further boost the need for nickel-plated connectors and battery components. These applications demonstrate the role of nickel coatings in enhancing component longevity, safety, and reliability.
- Automotive coatings improve corrosion and wear resistance on bolts, fasteners, brake parts, hydraulic systems, engine shafts, and gearboxes.
- Aerospace coatings offer excellent adhesion, corrosion protection, hardness, and erosion resistance.
- Specialized brush plating allows on-site maintenance of aircraft parts, reducing costs and downtime.
The industry report "3D Print Plating Service 2025-2033 Analysis" projects the market for nickel plating to reach $500 million by 2025 and $2 billion by 2033, with a 15% CAGR, highlighting strong growth in these sectors.
Electronics and Electrical Parts

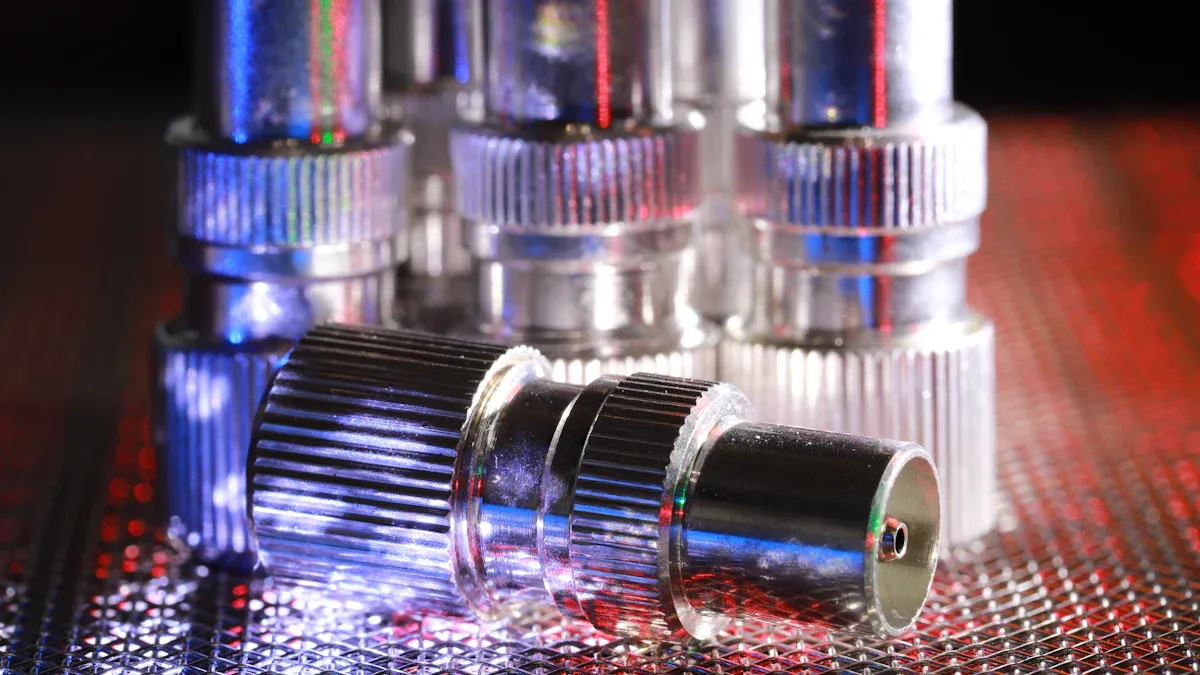

Manufacturers in the electronics industry use nickel-phosphorus coatings for their excellent solderability and electrical conductivity. These properties ensure reliable connections in printed circuit boards (PCBs), connectors, and semiconductor components. Uniform coatings improve electrical performance and protect against corrosion and wear. The ability to coat miniaturized components supports the production of advanced devices such as smartphones, wearables, and IoT products. As consumer electronics and communication devices evolve, the demand for high-quality protective coatings continues to rise. Performance data confirms that these coatings enhance durability and functionality, making them essential for reliable and high-performance electronic manufacturing.
Oil, Gas, and Chemical Industries
The oil, gas, and chemical industries operate in environments with high corrosion and wear risks. Nickel coatings protect valves, pumps, pipes, and fittings from aggressive chemicals and abrasive materials. High-phosphorus coatings offer superior hardness and resistance to high temperatures, which is critical for engine and high-stress components. These industries benefit from coatings that extend equipment life, reduce maintenance costs, and improve operational safety. As companies seek more energy-efficient and sustainable solutions, the adoption of advanced nickel coatings continues to grow.
Medical Devices and Equipment
Medical device manufacturers demand coatings that deliver reliability, biocompatibility, and precision. Nickel-phosphorus coatings meet these requirements in a wide range of healthcare applications. Engineers select these coatings for surgical instruments, orthopedic implants, diagnostic equipment, and dental tools. The uniformity of the coating ensures that even intricate or miniature components receive consistent protection.
A key advantage lies in the ability to create a pore-free, corrosion-resistant barrier. This barrier prevents contamination and extends the service life of devices exposed to bodily fluids or harsh sterilization cycles. High-phosphorus coatings, in particular, offer excellent resistance to corrosion and chemical attack. These properties prove essential for devices that must withstand repeated cleaning and autoclaving.
Note: Regulatory agencies such as the FDA and ISO require strict adherence to quality and safety standards for medical coatings. Manufacturers must validate that coatings do not introduce harmful substances or compromise device performance.
The smooth, hard surface produced by nickel-phosphorus plating reduces friction and wear. This feature benefits moving parts in surgical tools and joint implants. Reduced friction also minimizes the risk of particle generation, which can cause inflammation or device failure. The non-magnetic nature of high-phosphorus coatings allows safe use in MRI environments, expanding the range of compatible devices.
Manufacturers value the versatility of this coating process. It can be applied to stainless steel, titanium, and even certain polymers. The process supports both mass production and custom, patient-specific devices. Consistent coating thickness helps maintain tight tolerances, which is critical for devices that require precise fit and function.

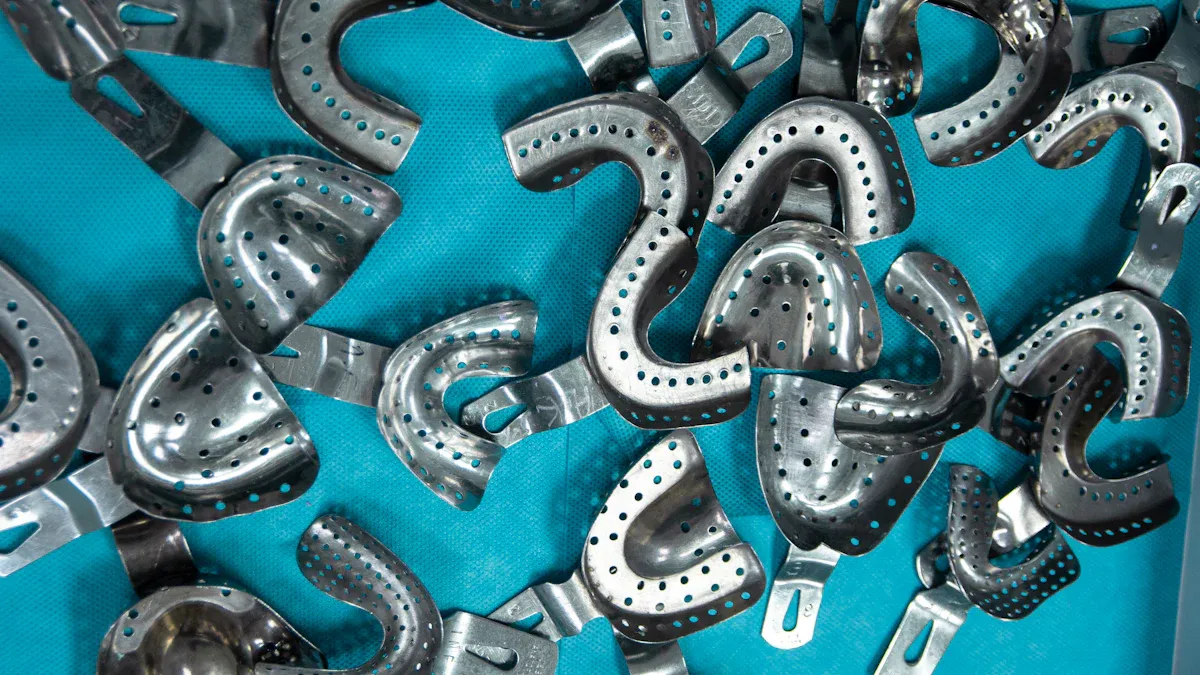

- Common medical applications include:
- Orthopedic screws and plates
- Catheter components
- Surgical scissors and forceps
- Dental drills and implant abutments
The healthcare sector continues to adopt advanced coatings to improve patient safety, device longevity, and clinical outcomes.
Electroless Nickel Plating Process Overview
Surface Preparation
Surface preparation determines the success of the plating process. Technicians begin by removing oxide layers from the substrate. They dip samples in a mixture of hydrofluoric acid (HF) and hydrochloric acid (HCl) at room temperature for two minutes. This step eliminates surface oxides and contaminants. Next, an activation stage uses a hydrogenating treatment in an acidic solution for sixty-five minutes. This forms a hydride conversion film, which prevents re-oxidation. During these treatments, magnetic stirring at 500 rpm ensures uniform ion distribution and avoids local overheating. After each chemical step, rinsing with distilled water removes residual acids and prevents cross-contamination.
Surface cleaning methods include organic solvent cleaning, plasma cleaning, and chempolishing. Plasma cleaning uses 100 W RF power, a 30 SCCM argon flow rate, and 320 mTorr pressure to etch the surface isotropically. The choice of cleaning method affects the microstructure and quality of the final nickel coating. Careful selection and control of these parameters ensure optimal adhesion and coating performance.
Plating Bath and Deposition
The plating bath contains nickel salts, reducing agents, pH adjusters, stabilizers, and complexing agents. Stabilizers such as lead, bismuth, or antimony ions play a critical role in controlling the plating rate and preventing bath decomposition. Operators monitor stabilizer concentrations using mercury-free voltammetric sensors, which provide precise and environmentally safe measurements. Maintaining the correct stabilizer level ensures bath stability and consistent deposition rates.
Process parameters such as bath temperature, reducing agent concentration, and stabilizer content influence deposition rate and coating efficiency. Higher bath temperatures increase the activation energy, accelerating the plating reaction. Stabilizer content must remain within a narrow range; too little causes instability, while too much inhibits deposition. X-ray diffraction analysis reveals that increasing phosphorus content decreases crystallite size, which can improve coating properties. Operators adjust these variables to achieve the desired coating thickness, microstructure, and performance.
Post-Treatment and Finishing
After deposition, technicians rinse and dry the coated parts to remove any remaining chemicals. Heat treatment, or baking, follows to enhance hardness and improve the crystalline structure of the nickel layer. Additional finishing steps may include passivation, applying protective topcoats, or using anti-corrosion agents, depending on the application’s requirements.
Quality control measures ensure the coating meets industry standards. Technicians perform visual inspections to detect surface defects and use X-ray fluorescence (XRF) or eddy current testing to measure coating thickness and conductivity. Ultrasonic testing identifies subsurface flaws, while adhesion and hardness tests assess durability. Salt spray tests evaluate corrosion resistance. These evaluations confirm that the finished product meets engineering and environmental specifications.
Considerations and Limitations
Cost Factors
Manufacturers often weigh the initial expense of surface finishing methods against long-term benefits. A detailed cost-benefit analysis compares Electroless Nickel Immersion Gold (ENIG) with alternatives like Hot Air Solder Leveling (HASL) and Organic Solderability Preservative (OSP) for high-reliability printed circuit boards. ENIG typically incurs higher upfront material and process costs. However, it delivers superior reliability, corrosion resistance, and performance in harsh environments. Industry studies recommend using a decision matrix based on IPC standards to balance initial investment with lifecycle value, especially for mission-critical applications. The uniform coatings, excellent wear resistance, and corrosion protection provided by nickel-phosphorus alloys can extend component life and reduce maintenance. Medium-phosphorus coatings often offer the best balance between cost and performance. Fast deposition rates and stable bath chemistry help control production costs, while heat treatment further enhances durability, supporting the economic case for this technology.
Environmental and Safety Concerns
Strict regulations govern the handling and disposal of chemicals used in nickel plating. Agencies such as OSHA, ACGIH, and COSHH set workplace exposure limits for nickel compounds to protect worker health.
| Jurisdiction | Substance | Exposure Limit (as Ni) | Regulatory Basis |
|---|---|---|---|
| USA | Nickel metal/insoluble compounds | 1 mg/m³ | OSHA PEL |
| USA | Soluble nickel compounds | 0.1 mg/m³ | ACGIH TLV |
| UK | All nickel compounds | 0.5 mg/m³ | COSHH WEL |
| Canada | Nickel (federal employees) | Set by Canada Labour Code | Canada Labour Code |
Waste management remains critical due to the presence of heavy metals. Facilities must treat and dispose of hazardous waste in compliance with regulations like the U.S. Resource Conservation and Recovery Act (RCRA). Air emissions require control through ventilation and filtration. Chemical handling demands personal protective equipment, training, and engineering controls. Resource efficiency, spill containment, and regulatory compliance all play essential roles in minimizing environmental and workplace risks.
Potential Drawbacks and Limitations
Several challenges can affect the adoption and performance of nickel-phosphorus coatings:
- Higher costs compared to electrolytic nickel plating due to complex chemistry and expensive reagents.
- Slower deposition rates may impact production throughput.
- Phosphorus content can alter material properties, sometimes making the coating unsuitable for specific applications.
- Lower heat resistance than electrolytic nickel plating, limiting use in high-temperature environments.
- Chemistry-related issues, such as bath instability from temperature or pH imbalances.
- Contamination from metals or inorganic ions can disrupt deposition and reduce adhesion.
- Surface defects like roughness, pitting, or non-uniform deposits may occur if preparation or agitation is inadequate.
- Environmental risks include phosphorus-rich waste and byproducts that complicate recycling and disposal.
Careful process control, regular monitoring, and robust environmental management help address these limitations and ensure consistent quality.
Electroless Nickel Plating delivers uniform coatings, superior corrosion resistance, and enhanced wear properties across diverse industries. Manufacturers in automotive, electronics, aerospace, and healthcare rely on this process for critical components. The table below highlights its growing market and future trends:
| Aspect | Details |
|---|---|
| Market Size (2024) | USD 4.27 billion |
| 2032 Forecast | USD 5.49 billion |
| Key Advantages | Uniform coverage, corrosion resistance, biocompatibility |
With ongoing innovations and sustainability efforts, Electroless Nickel Plating remains essential for modern manufacturing and product protection.
FAQ
What materials can receive electroless nickel plating?
Most metals, including steel, aluminum, copper, and brass, accept electroless nickel plating. Some plastics and ceramics also qualify after special surface preparation. The process works well for both conductive and non-conductive substrates.
How thick is a typical electroless nickel coating?
A standard coating ranges from 1 to 40 micrometers (µm). The required thickness depends on the application. Thicker coatings provide better corrosion and wear resistance.
Does electroless nickel plating change part dimensions?
Yes, the process adds a uniform layer to all surfaces. Engineers must account for this increase during design. The even thickness helps maintain precise tolerances.
Is electroless nickel plating environmentally safe?
Regulatory agencies require strict controls for chemical handling and waste disposal. Facilities must follow safety guidelines to protect workers and the environment. Modern processes use advanced filtration and recycling systems.
